Specifications

Operation system

Linux

MCU

GD32E

Video chip

Allwinner T507

4G communication module

BC72

GNSS module

B1612-M1

AHD video input

1st–channel AHD 1080P(1290*1080)
Second, third, fourth channel AHD 720P(1280*720)

Audio input

2-channel audio, PCM format

Audio output

1-channel audio, PCM format, inner speaker.

Video uploading format

MP4

Video encode

H.264

Audio encode

G711A

Code rate

Main code rate:1792Kbps; Subcode rate: 512Kbps

Real-time video recording

4--channels

WIFI

Built-in WIFI, 2.4GHz

2G/3G/4G

LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM: 900/1800MHZ
Note: Different countries or regions need to choose different communication modules due to the differences of communication
operators, please ask sales for details.

TF card

Support two TF card ( single card max 256G)

Working voltage

DC10V-36V

Working electricity

420mA@12V(Not load)；240mA@24V（Not load）

Sleeping power consumption

6mA@12V

Working temperature

-20℃~ +60℃

Storage temperature

-30℃ ~ +80℃

Backup battery

3.7V 2000mAh

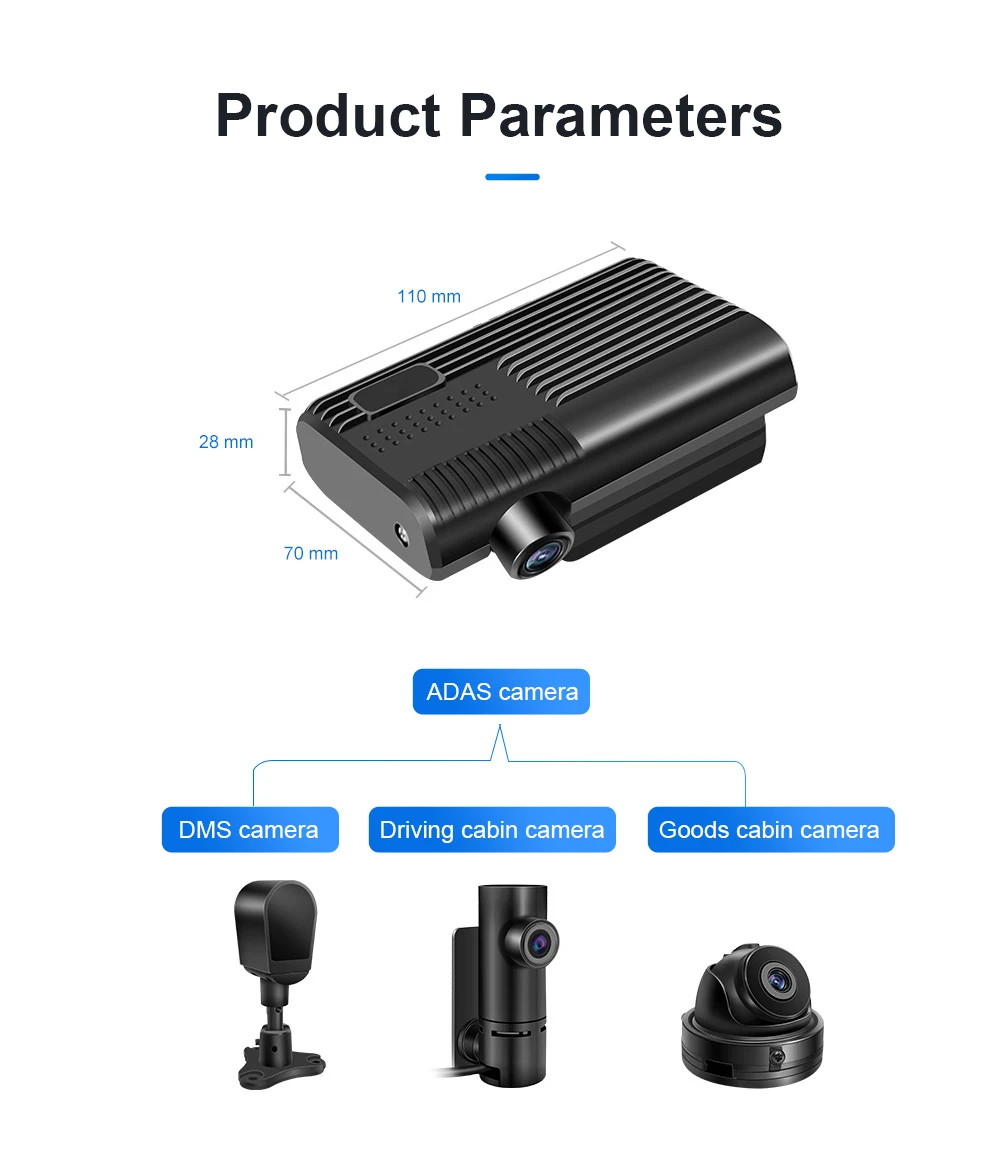

Device dimension

L110mm*W70mm*H28mm
