CNEx certificated, IP68
· Stainless steel 304/316L
· Surface finish: electropolished or corrosion resistant paint finish
· Built-in video compression coding, easy for network transmission powerful IDE image detail enhancement algorithm
· Intelligent high-temperature pre-alarming with various adjustable grades, higher detection efficiency, less misinformation
· Embedded intelligent analysis supports motion detection, line crossing detection, regional entry/exit detection, and intelligent PTZ tracking
· Professional photoelectric zooming technology
· AGC(automatic gain stability), 3D noise reduction, IDE (image details enhancement algorithm)
· Double serial communication: RS-232*1, R-485*1
· Application Scenario: It is mainly applicable in scenarios of zero visibility and strong light source interference, such as airport, harbor, tourism area, perimeter, oilfield, military, key fields
|
General Specifications
|
|
Model
|
PTZ.STH
|
|
Explosion level
|
ExdⅡCT6 Gb/Ex tD A21 IP68 T80℃
|
|
Input Voltage
|
AC220V±10%
|
|
Protection level
|
IP68 Standard, Surge Protection and Voltage Transient Protection
|
|
Material
|
SUS304/316L
|
|
Working Temperature/Humidity
|
-20℃～+60℃, ≤90%RH
|
|
Pan Range
|
360° continuous
|
|
Tilt Range
|
-90°~+90°
|
|
Pan speed
|
Configurable, from 0.1°/S~300°/S
|
|
Tilt speed
|
Configurable, from 0.1°/S~240°/S
|
|
Number of Preset
|
256
|
|
Power-off Memory
|
Support
|
|
Park Action
|
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan//Frame Scan/Panorama Scan
|
|
PTZ Position Display
|
ON/OFF
|
|
Power Supply
|
220VAC
|
|
Power Consumption
|
Max:40w
|
|
Dimension
|
420mm(L)×238mm(W)×378mm(H)
|
|
Weight
|
35kg
|
|
Packing
|
Carton box with EPE inside（605mm*500mm*305mm）
|

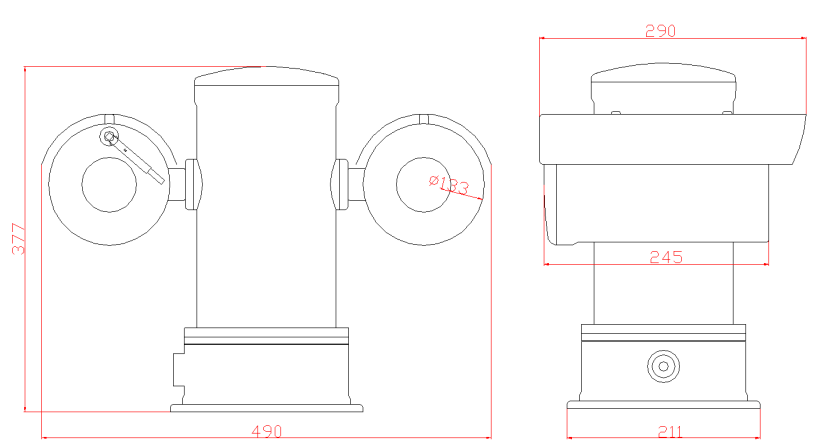

Dimension
