·Stainless steel 304/316L
·IP68
·1 cable gland
·1/2.8" Progressive Scan CMOS
·1920(H)*1080(V)@60fps
·H.265,H.265+
·Intelligent variable speed function, PTZ speed automatic adjustment with the depth of field;
·Built-in power converter,no need for additional ex-proof power supply box, the real integrative equipment, easy to install and cost savings;
·Built-in OSD menu, friendly interface and easy to operate；
·CVT,Continuously 360° horizontal rotation and vertical ±90°auto-flip；
·Optional accessories: sun shield, lens decoder, auto-heating, auto-cooling modular.
|
Specifications
|
|
Model
|
PTZ.DH
|
|
Explosion level
|
ExdⅡCT6 Gb/Ex tD A21 IP68 T80℃
|
|
Input Voltage
|
AC220V±10%
|
|
Protection level
|
IP68 Standard, Surge Protection and Voltage Transient Protection
|
|
Material
|
Stainless steel 304/316L
|
|
Working Temperature/Humidity
|
-40℃～+60℃, ≤90%RH
|
|
Pan Range
|
360° continuous
|
|
Tilt Range
|
-90°~+90°
|
|
Pan speed
|
Configurable, from 0.1°/S~45°/S
|
|
Tilt speed
|
Configurable, from 0.1°/S~450/S
|
|
Number of Preset
|
256
|
|
Power-off Memory
|
Support
|
|
Park Action
|
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan//Frame Scan/Panorama Scan
|
|
PTZ Position Display
|
ON/OFF
|
|
Power Supply
|
220VAC
|
|
Power Consumption
|
Max:50w
|
|
Dimension
|
350mm(L)×290mm(W)×377.5mm(H)
|
|
Weight
|
27kg
|
|
Packing
|
Carton box with EPE inside（605mm*500mm*305mm）
|

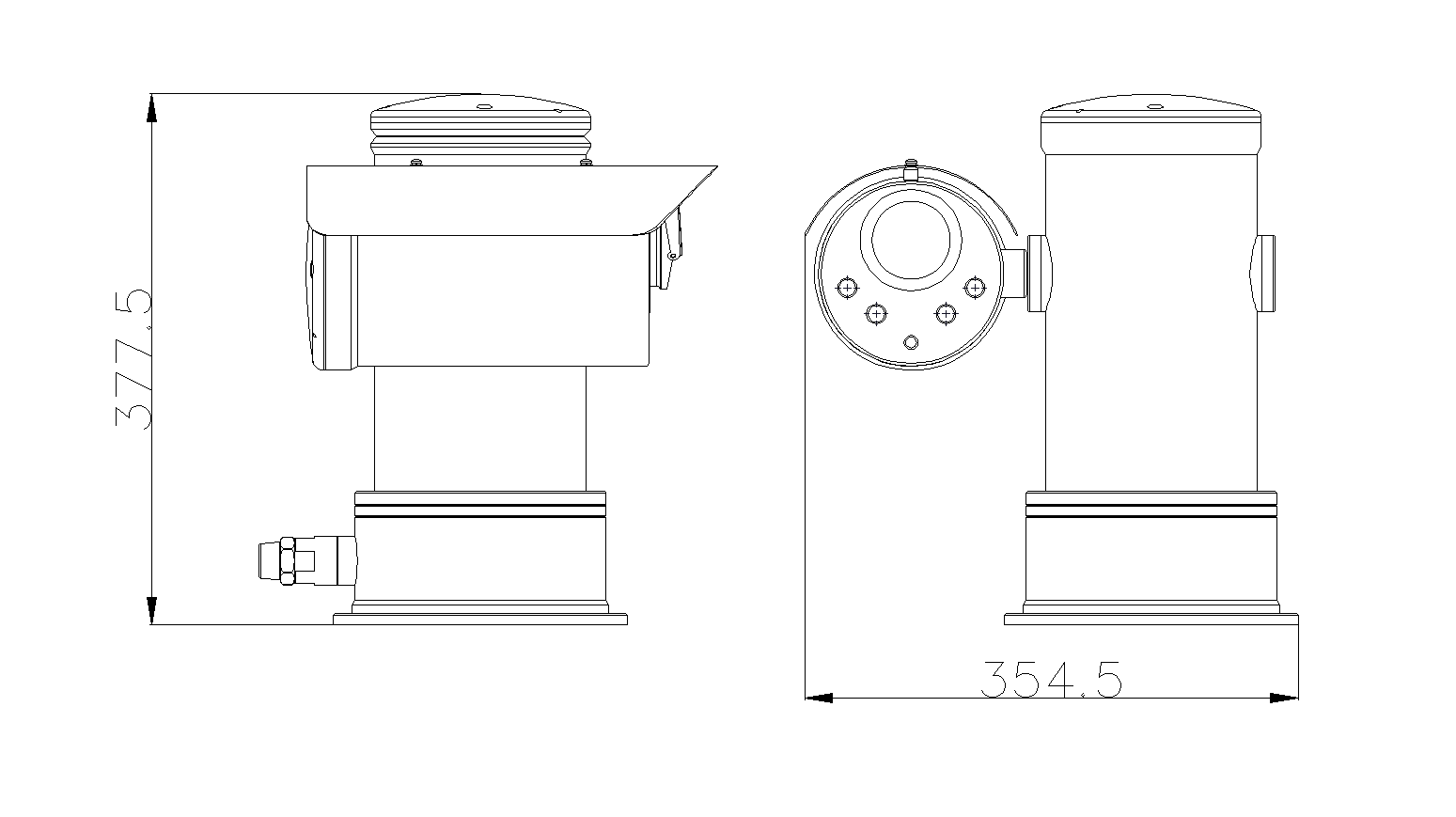

Dimension
