·Stainless steel 304/316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·1 cable gland
·1/2.8" Progressive Scan CMOS
·1920(H)*1080(V)@60fps
·H.265,H.265+
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Optional accessories: sun shield, lens decoder, auto-heating, auto-cooling modular.
|
General Specification
|
|
Model
|
IC.HN
|
|
Explosion levels
|
Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃ IP68
|
|
Waterproof
|
IP68
|
|
Input Voltage
|
220VAC±10%
|
|
Voltage
|
DC12V/AC220V/PoE(802.3af)(Class 0)
|
|
Current
|
≤2A
|
|
Power Consumption
|
≤8W
|
|
Installation
|
Outdoor
|
|
Operation Temperature
|
-20℃～+60℃
|
|
Operation Humidity
|
≤90%RH
|
|
Dimension
|
350mm(L)×280mm(W)×150mm(H)
|
|
Day& Night:
|
IR cut filter with auto switch
|
|
Weight
|
10kg
|
|
Window
|
Two-sized coating tempered glass
|
|
Packing
|
Carton box with EPE inside
|
|
Packing size
|
510mm(L)×400mm(W)×255mm(H)
|

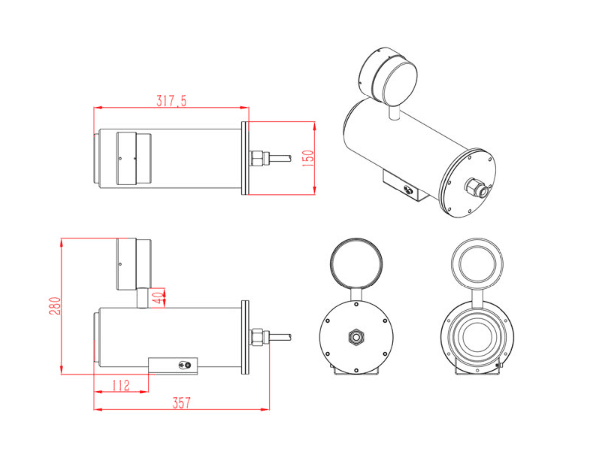

Dimension
.png)
|
Location：
