Name
|
9inch Truck AHD Quad Monitor IPS High Quality Panel
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED, 500cd/㎡
|
|
View angle
|
L/R:180°,UP:180°,down:180° degree
|
|
Video
|
Four-channel AHD video input,adjustable display of image1/ image2/ image3/ image4,Support AHD720P/960P/1080P and CVBS multi-video
hybrid input
|
|
4 ways Trig Trigger priority
|
V2>V1>V3>V4
|
|
System
|
PAL&NTSC auto-switching
|
|
ppearance color
|
black rubber paint
|
|
Bracket
|
Butterfly bracket/fan bracket/Suction Cup holder (optional)
|
|
Power supply
|
DC 9V-36Vinput，12V output
|
|
Connector
|
RCA/4P connector
|
|
Dimension
|
180*121*26(75)mmmm
|
--4Pin DIN waterproof screw on connector or RCA connector optional
--Standard rear view camera
--The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
Camera:
(1)1/4" Sharp Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 800 TV lines
(4)With 18 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature: -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
.png)

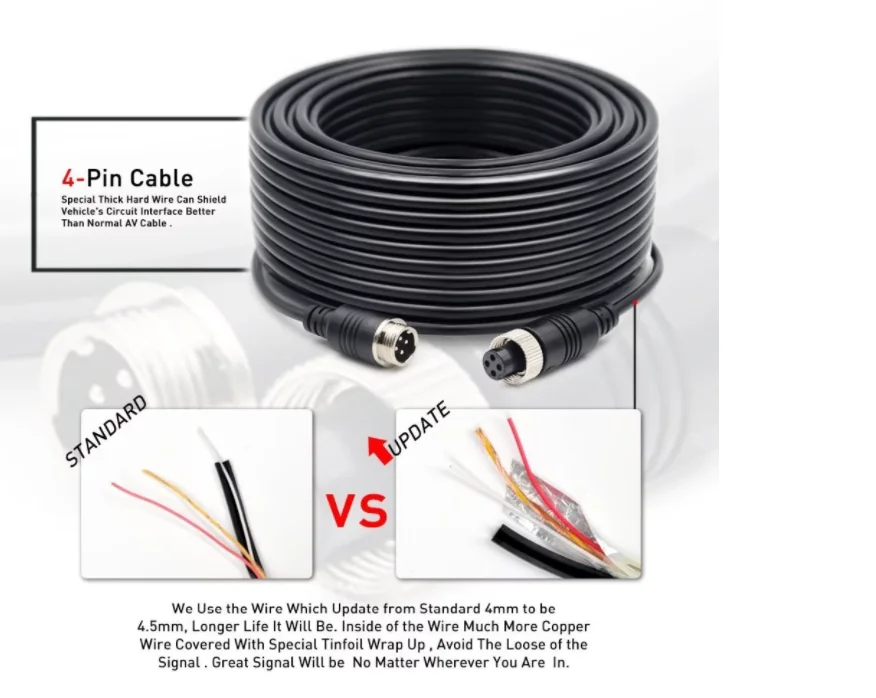

CABLE
--4 Pole Screw Locking Extension Cable
--Design for Car Rear View Systems using in long vehicle
--One Male connect(4 pin) and the other female connector(4 socket)
--Color: Black
--Length: 5m, 15m, 20m or Customized
.png)
Our high quality quad monitor are ideal for monitoring a wide range of vehicles below.
 |
