    Location:Home >> Vehicle Mobile Safety Systems

zoom in the picture
Item Number
7inch truck security system
Categories:
Vehicle Mobile Safety Systems
summarization:

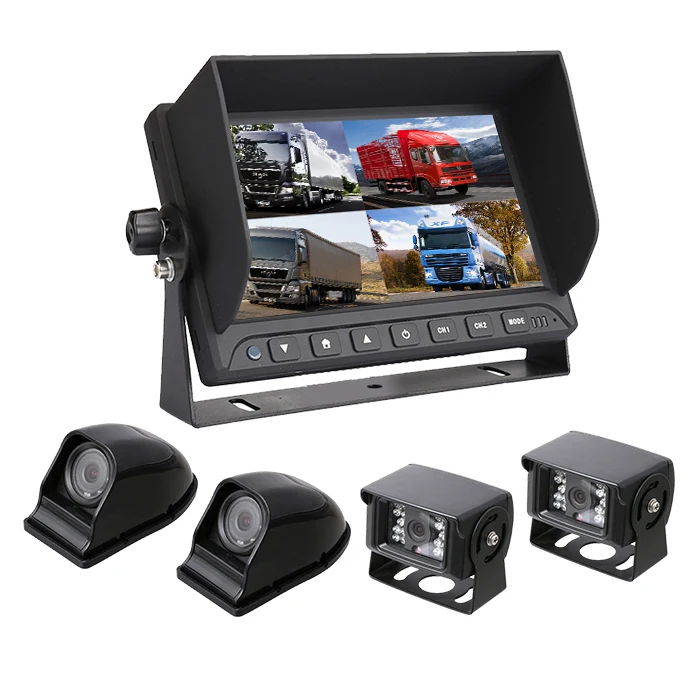

7inch truck security system

Specifications:

Reversing camera system for Heavy Truck, HVG, Caravan,RV, Lorry, Oil Tank Truck, Dry Bulk Tanker, Liquid Tanker, Tipping Truck, Van Truck, Car Carrier Truck, Curtainsider Rigid Truck,Car Carrier Truck.  Backup  auto  truck accessories camara



Display size: 7″
Display format: 16:9
Power dissipation: 7.5W
Power supply: 9V~36V
Format: NTSC/PAL
Pixel: 800*RGB*480
Video input: 2 video input
Menu languages: Compatible with several languages
Blue screen,When no signal
Key and full function OSD remote control
Auto switch when back the vehicle
U shape stand or butterfly shape stand available
Especially designed for Bus, Agricultural and engineering vehicle using





--4Pin DIN waterproof screw on connector or RCA connector optional
--Standard rear view camera
--The automatic day/night sensor and infrared LEDs to provide clear image in dull condition

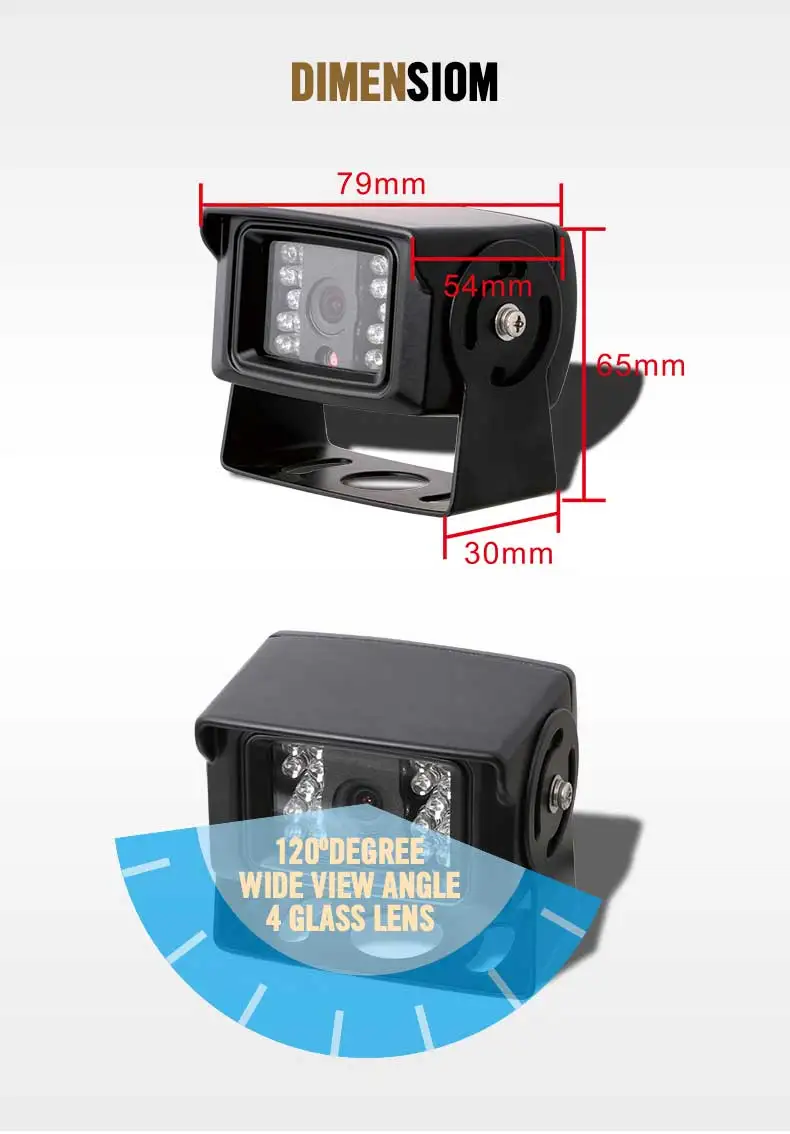

Camera:



(1)1/4" Sharp Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 800 TV lines
(4)With 18 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature: -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable

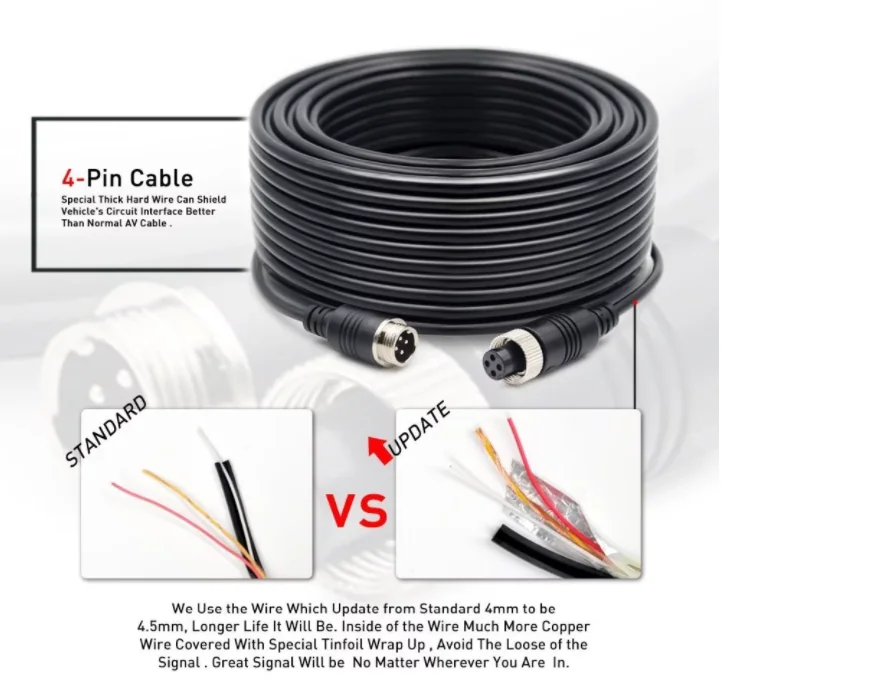

CABLE
--4 Pole Screw Locking Extension Cable
--Design for Car Rear View Systems using in long vehicle
--One Male connect(4 pin) and the other female connector(4 socket)
--Color: Black
--Length: 5m, 15m, 20m or Customized



Our high quality quad monitor are ideal for monitoring a wide range of vehicles below.
